Waterra SS-19 - Stainless Steel Foot Valve - Fits Standard Flow System (12mm X 16mm Tubing)
€33.00
In stock
Product Details
Brand: Footvalve SS19
The Waterra Standard Flow System is the most popular Waterra (inertial) Pump. This system is best suited for 25mm inch to 50mm ID monitoring wells and can provide lifts of 45m to 60m. Flow rates can be as much as 3.7 liters per minute. Footvalves / check valves consist of a check ball inside the valve body, available in stainless steel, size 16 mm ODx 12.5 mm ID (5/8 x 1/2) diameter. Tapered threads enable the foot-valve to self-tap onto either end of the sample tubing. The Standard Flow System is suitable for a variety of sampling environments.

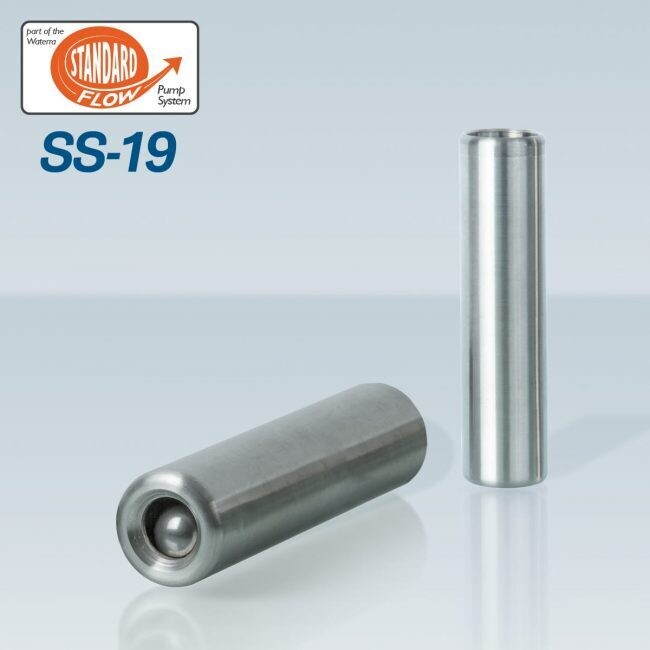

The SS-19 Foot Valve is best used for narrow diameter wells as the Outside Diameter of the Valve is 19 mm (3/4 inch). It would fit nicely in a 1 inch ID well for instance.
The Waterra SS-19 Foot Valve is recommended when there is concern about chemical inertness or the the well ID is a bit tighter.
For 2 inch wells, we would normally recommend a D-25 Foot Valve which is an Acetal Thermoplastic (Delrin) alternative which also threads onto Waterra Standard Flow Tubing.
The standard system with an SS-19 Foot Valve can provide lifts of 150-200 feet. Flow rates can be as much as 1 gallon per minute.
