The Waterra Well Slug is a convenient, fixed volume, cylindrical solid for performing instantaneous, rising or falling, head permeability tests (hydraulic conductivity) in boreholes.

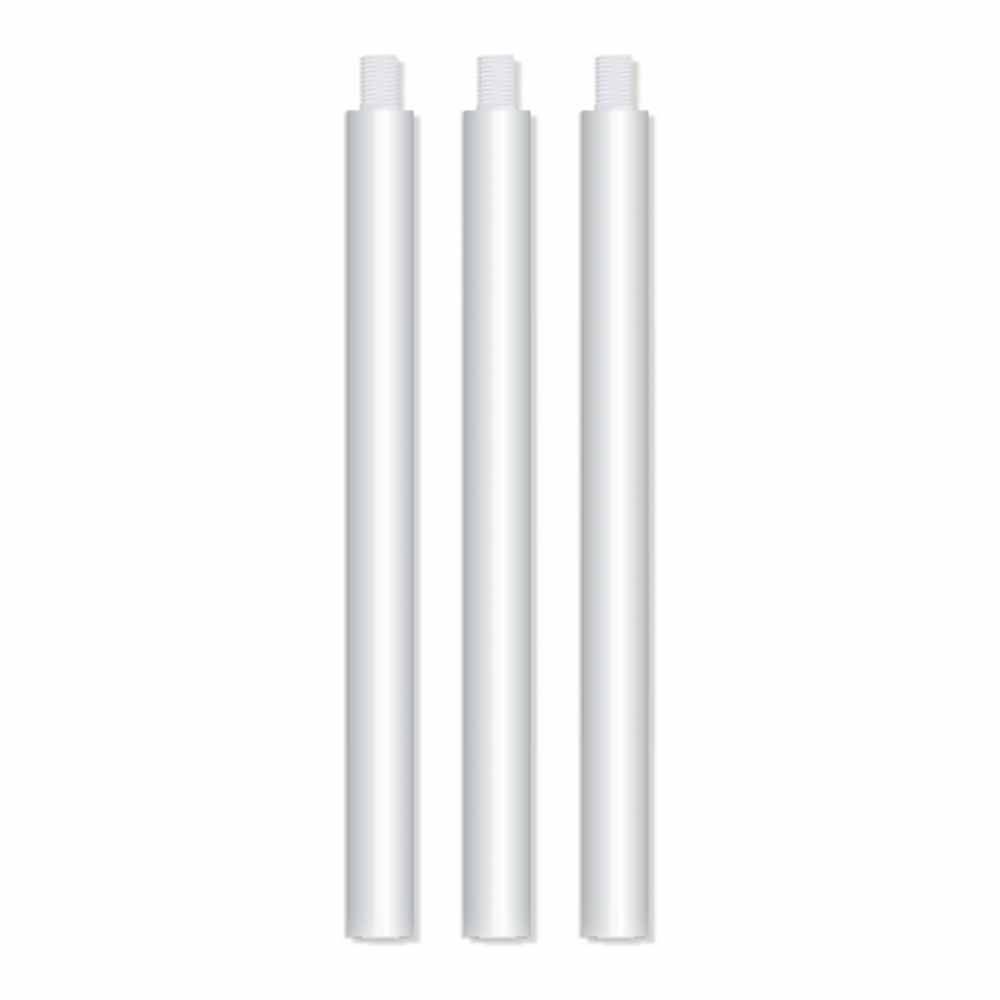

The Waterra Well Slug (WWS-2X3) is designed specifically for 2″ Schedule 40 monitoring wells, but in practice can be used in larger monitoring well. It consists of three sections (and is sold as a 3 section assembly) of solid Acetal Rod which can be used either individually or together to produce greater displacement.
It is constructed of Acetal (Delrin) thermoplastic because of its long acceptance as a material of choice for groundwater monitoring equipment. It is known for its durability, its chemical resilience in harsh environments, and unlike some polymers, acetal thermoplastic is PFOA and PFAS free.
Individual Section of the Waterra Well Slug | |
---|---|
Length | 1.63' (497.4 mm) |
Diameter | 1-5/8" (41.28 mm) |
Volume | 0.15 imp gal (0.18 US gal) (0.67 L) |
Three Sections of the Waterra Well Slug | |
---|---|
Length | 4.9' (1492 mm) |
Diameter | 1-5/8" (41.28 mm) |
Volume | 0.44 imp gal (0.53 US gal) (2.0 L) |
